防爆等级
Ex db IIB T4 Gb

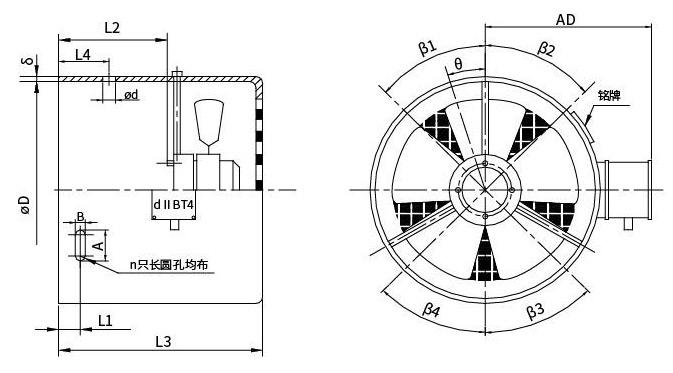

| 型号 | φD | L1 | L2 | L3 | L4 | AD | A | B | n | δ | 安装孔偏移角度 | φd | θ | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| β1 | β2 | β3 | β4 | |||||||||||||
| FZB63A | 121 | 15 | 60 | 200 | / | 137 | 12 | 6 | 4 | 1.5 | 45° | 45° | 45° | 45° | / | / |
| FZB71A | 136 | 15 | 60 | 200 | / | 144 | 12 | 6 | 4 | 1.5 | 45° | 45° | 45° | 45° | / | / |
| FZB80A | 155 | 15 | 57 | 200 | / | 154 | 14 | 7 | 4 | 1.5 | 23.5° | 53.5° | 36.5° | 66.5° | / | / |
| FZB90A | 175 | 20 | 65 | 205 | / | 164 | 14 | 7 | 4 | 1.5 | 23.5° | 53.5° | 36.5° | 66.5° | / | / |
| FZB100A | 193 | 20 | 77 | 260 | / | 187 | 14 | 7 | 4 | 2 | 23° | 53° | 37° | 67° | / | / |
| FZB112A | 217 | 22 | 77 | 260 | / | 199 | 14 | 7 | 4 | 2 | 35.5° | 35.5° | 35.5° | 35.5° | / | / |
| FZB132A | 258 | 22 | 87 | 270 | / | 219 | 14 | 7 | 4 | 2 | 36° | 36° | 36° | 36° | / | / |
| FZB160A | 314 | 36 | 107 | 287 | / | 249 | 25 | 11 | 4 | 2 | 30° | 30° | 30° | 30° | / | / |
| FZB180A | 352 | 35 | 119 | 295 | / | 267 | 25 | 11 | 4 | 2 | 30° | 30° | 30° | 30° | / | / |
| FZB200A | 393 | 38 | 129 | 310 | / | 288 | 25 | 11 | 4 | 2 | 30° | 30° | 30° | 30° | / | / |
| FZB225A | 443 | 52 | 131 | 357 | / | 313 | 25 | 1 | 4 | 2.5 | 45° | 45° | 45° | 45° | / | / |
| FZB250A | 491 | 68 | 177 | 403 | 112 | 352 | 25 | 11 | 4 | 2.5 | 45° | 45° | 45° | 45° | 16 | / |
| FZB280A | 543 | 45 | 164 | 390 | 66 | 384 | 25 | 11 | 4 | 2.5 | 45° | 45° | 45° | 45° | 16 | 10 |
| 风机型号 | 电机型号 | 电压 V | 频率 Hz | 输入功率 W | 输入电流 A | 转速 rpm | 风量 m³/h | 风压 Pa | 噪声 dB(A) | 防护等级 IP |
|---|---|---|---|---|---|---|---|---|---|---|
| FZB63A | 68-22.5 | 380 | 50 | 35 | 0.11 | 2800 | 45 | 40 | 62 | 55 |
| FZB71A | 68-22.5 | 380 | 50 | 38 | 0.11 | 2800 | 52 | 50 | 62 | 55 |
| FZB80A | 68-22.5 | 380 | 50 | 38 | 0.11 | 2800 | 58 | 60 | 62 | 55 |
| FZB90A | 68-22.5 | 380 | 50 | 40 | 0.11 | 2800 | 91 | 80 | 65 | 55 |
| FZB100A | 92-17 | 380 | 50 | 60 | 0.21 | 2700 | 142 | 80 | 67 | 55 |
| FZB112A | 92-17 | 380 | 50 | 85 | 0.21 | 2700 | 229 | 80 | 67 | 55 |
| FZB132A | 92-32 | 380 | 50 | 70 | 0.28 | 1400 | 337 | 35 | 69 | 55 |
| FZB160A | 92-32 | 380 | 50 | 90 | 0.28 | 1400 | 609 | 40 | 72 | 55 |
| FZB180A | 92-32 | 380 | 50 | 105 | 0.28 | 1400 | 686 | 55 | 72 | 55 |
| FZB200A | 92-32 | 380 | 50 | 130 | 0.31 | 1400 | 1679 | 65 | 72 | 55 |
| FZB225A | 102-60 | 380 | 50 | 180 | 0.55 | 1400 | 1786 | 70 | 74 | 55 |
| FZB250A | 102-60 | 380 | 50 | 250 | 0.58 | 1400 | 1813 | 80 | 75 | 55 |
| FZB280A | 102-60 | 380 | 50 | 370 | 0.70 | 1400 | 2415 | 85 | 78 | 55 |
